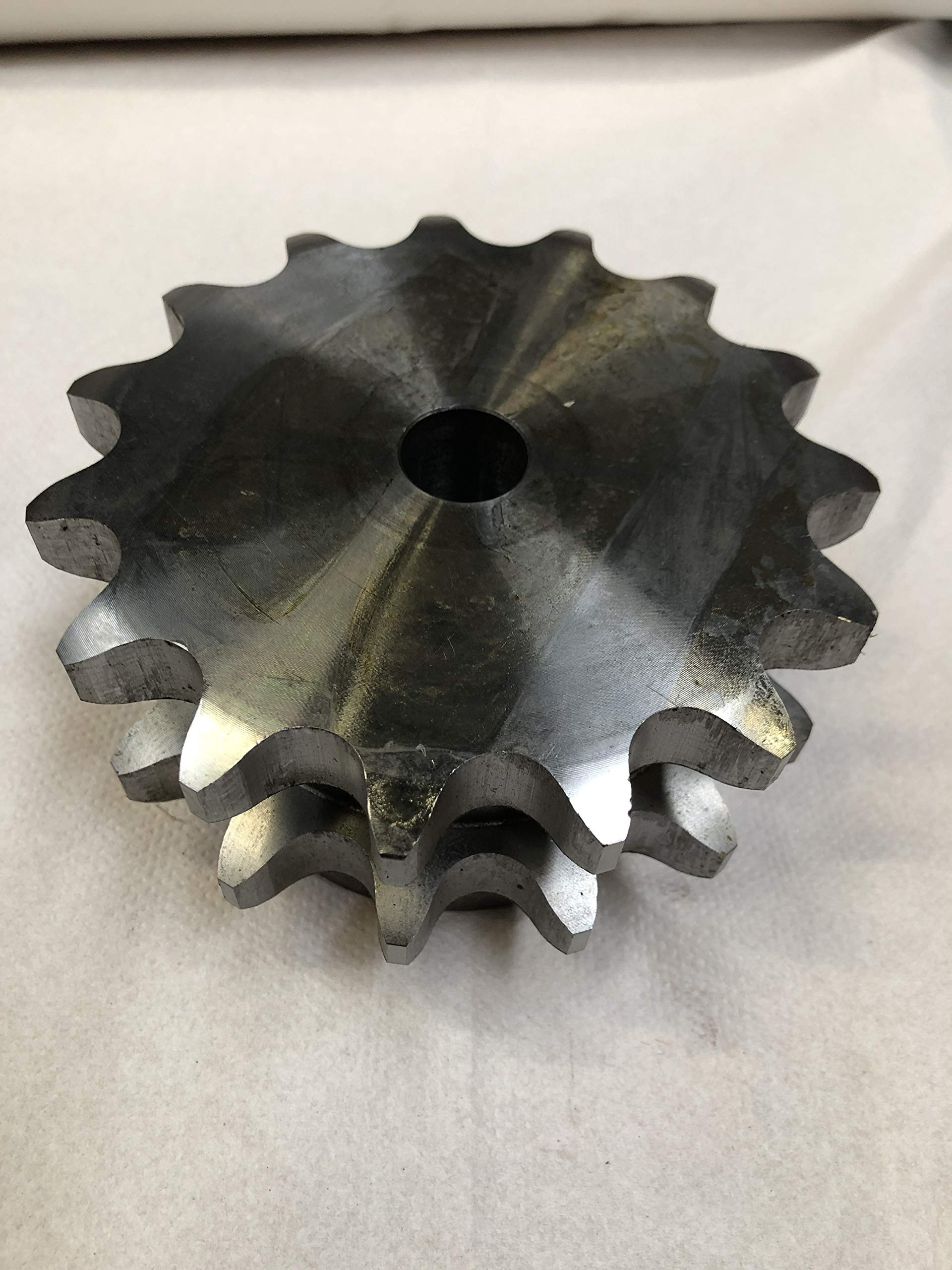

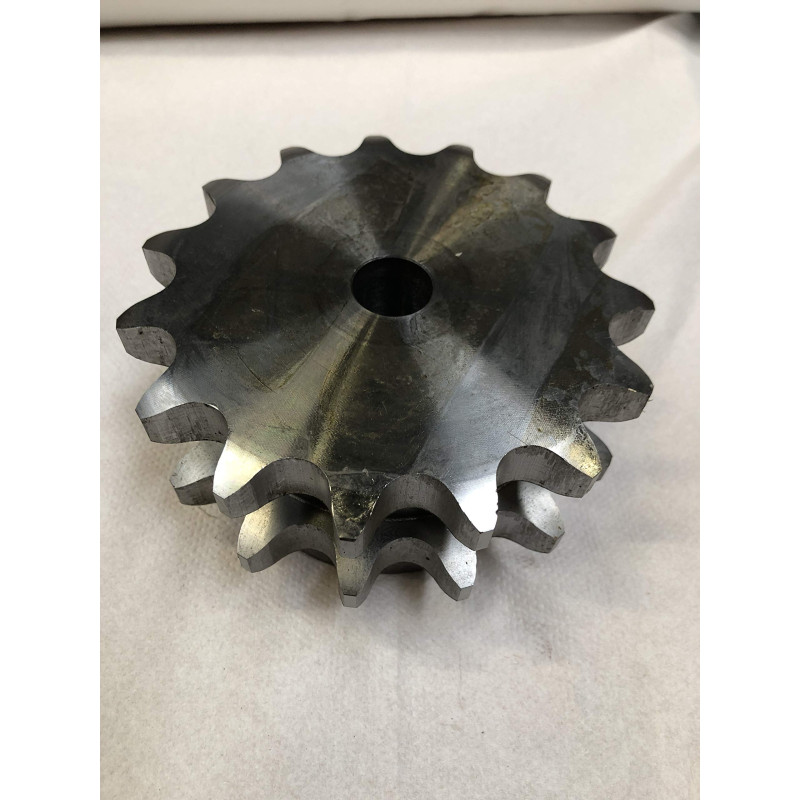

PIGNON DE TRANSMISSION SKF PHS 16B-2B15

SKF PHS 16B-2B15 SPROCKET BS SERIES Pitch P (mm) 25.4 Pitch P (in) 1 No. of teeth 15 Pitch diameter (mm) 122.17 Pitch diameter (in) 4.81 Min. bore (mm) 20 Min. bore (in) 0.79 Max. bore (mm) 58 Max. bore (in) 2.28 Hub H (mm) 96 Hub H (in) 3.78 Hub L (mm) 70 Hub L (in) 2.76 Weight (kg) 4.58 Weight (lbs) 10.1
